1. > Braking
  2. > Disc brakes
  3. > Brake discs
  4. > Front brake disc set Audi Seat Skoda VW

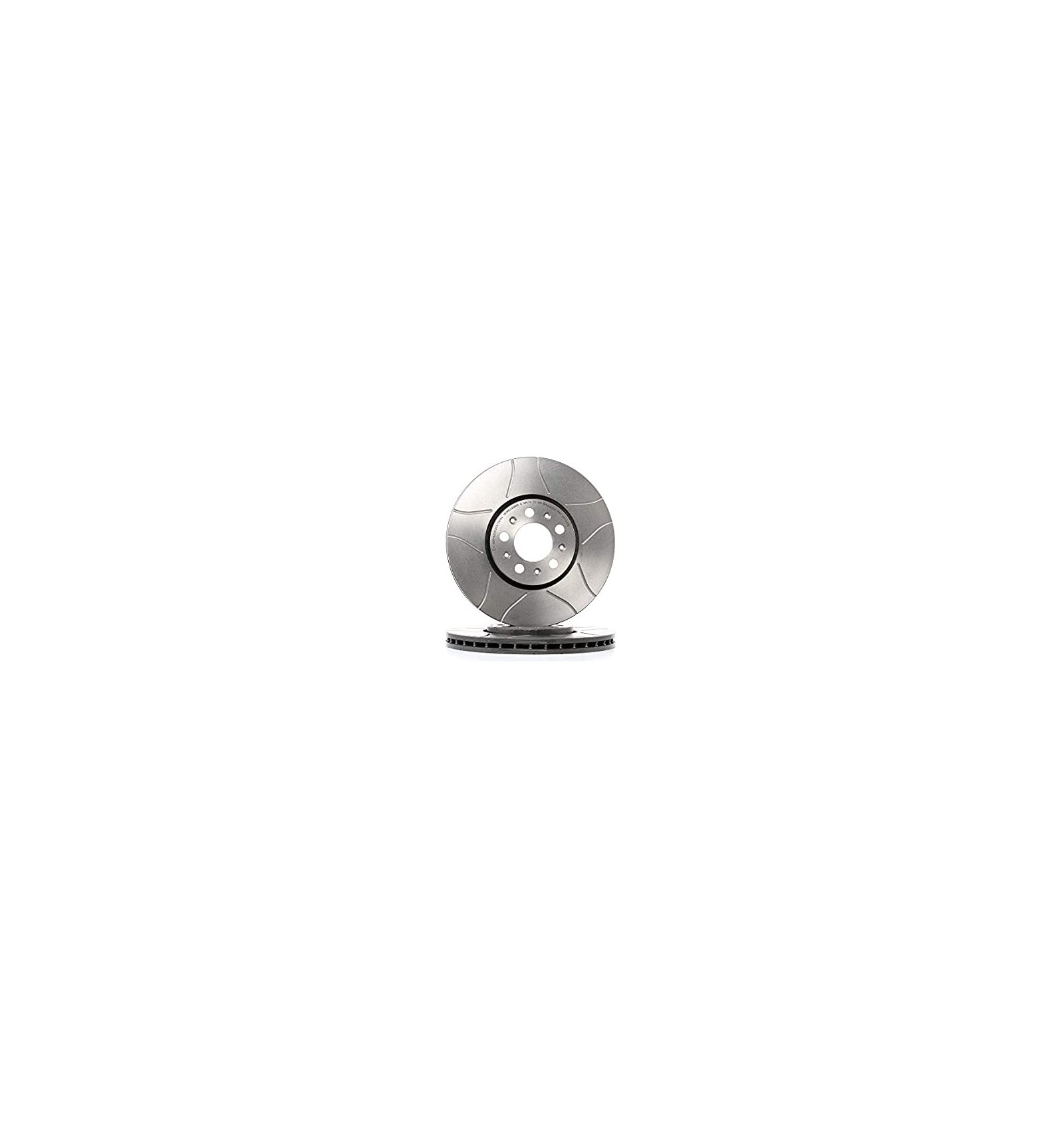

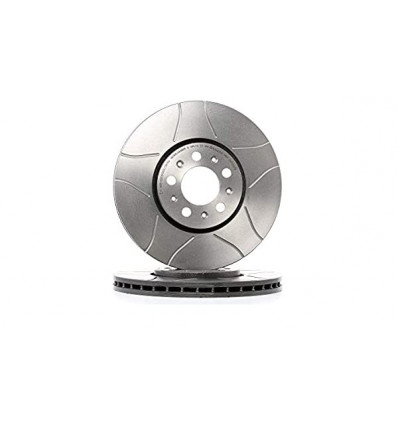

Front brake disc set Audi Seat Skoda VW

09.7010.76

3701089364515

New product

Jeu de disques de frein avant Audi Seat Skoda VW Expand
Brembo Brembo

Front brake disc set Audi Seat Skoda VW

More details

Print

Our advantages

1 year warranty

1 year
warranty

Product return up to 30 days

Product return
up to 30 days

Orders processed until 2 pm

Orders processed
until 2 pm

Quick delivery in 48h to 72h

Quick delivery in
48h to 72h

Original parts and adaptable

Original parts
and adaptable

Origine Pièces Auto International Shipping

More info

  • Diameter: 288 mm

  • Quantity: 2

  • Profile: Grooved

  • Product advantage: High carbon anti-corrosion treatment

  • Type: Vented

  • Range: Sport

  • Number of holes: 5

  • Centering diameter: 65 mm

  • Tightening torque: 120 Nm

  • Minimum thickness: 22 mm

  • Height: 34.2 mm

  • Thickness: 25mm

This product includes:

Brake disc retaining screw

Corresponds to manufacturer references:

  • AUDI: 1J0615301C 1J0615301K 6R0615301A 1J0615301R 1J0615301S 1J0615301

  • FIAT: 6R0615301A 1J0615301R 1J0615301C 6R0615301D

  • SEAT: 1J0615301K 6R0615301A 1J0615301S 1J0615301R 6R0615301D 1J0615301C

  • SKODA: 6R0615301A 1J0615301S 6R0615301D 1J0615301R 1J0615301C 1J0615301K

  • SKODA (SVW): 6RD615301A

  • VW: 1J0615301R 1J0615301K 6R0615301D 6R0615301A 1J0615301S 1J0615301C

Corresponds to the OEM references:

  • AP: 24847 X24847

  • ATE: 24112501131 24.0125-0113.1 24012501131 24032501131

  • BENDIX: 562041B

  • BOSCH: 0986478867 0986478976

  • BRECO: BS8471

  • BREMBO: 09701021 09701076 09.7010.20

  • Brake ENGINEERING: DI955637

  • DELPHI: BG3035C

  • FERODO : DDF1221

  • JURID : 562041J

  • LUCAS ELECTRICAL: DF4027

  • METELLI: 23-0365 230365

  • PAGID: 50315HC 50315 53960

  • TEXTAR: 92106603 92106600 92082400 98200082401

  • TRW: DF4027

  • VALEO: 186602

  • ZIMMERMANN: 100123500 100123520

  • sbs: 1815204759 16882 1815204760

Data sheet

Guarantee1 year see CGV, 1 an
BrandAUDI, SEAT, SKODA, VOLKSWAGEN
Number of items2

Compatibilities

Recherche par véhicule

Marque Famille Modèle Motorisation

AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Diesel 1.4 TDI (66 kw, 90 cv) (11/2014 à 10/2018)
AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Diesel 1.6 TDI (66 kw, 90 cv) (03/2011 à 04/2015)
AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Essence 1.0 TFSI (60 kw, 82 cv) (01/2016 à 10/2018)
AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Essence 1.0 TFSI (70 kw, 95 cv) (03/2015 à 10/2018)
AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Essence 1.2 TFSI (63 kw, 86 cv) (05/2010 à 04/2015)
AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Essence 1.4 TFSI (103 kw, 140 cv) (04/2012 à 04/2015)
AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Essence 1.4 TFSI (136 kw, 185 cv) (01/2011 à 04/2015)
AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Essence 1.4 TFSI (90 kw, 122 cv) (05/2010 à 04/2015)
AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Essence 1.4 TFSI (92 kw, 125 cv) (11/2014 à 10/2018)
AUDI A1 A1 (8X1, 8XK) (05/2010 à 10/2018) Essence 1.4 TSI (110 kw, 150 cv) (11/2014 à 10/2018)
